AS SERIES Automatic High-Speed Bottom Lock Folder Gluer
Name | GK-AS Automatic Bottom Lock Gluing Folding Machine | ||
Model | 650AS | GK-800AS | 1100AS |
Paper Material | Cardboard210-800g, E Corrugated | ||
Max. Liner speed | Max. 260 meter/minute | ||
Feeding way | Automatically and continuously feeding | ||
Way of folding |
Fold 1 and fold 3 are 180° and 135° Fold 2 and fold 4 are 180° Bottom folded and glued |
||
Glue Material | Water-base cold glue | ||
Total Power | 11.2 kw | 11.2 kw | 11.2 kw |
Weight | 4T | 4.5T | 5T |
Over dimension | 13x1.3x1.45m | 13x1.45x1.45m | 13x1.8x1.45m |
|
Paper Feeding Section
6pcs Adjustable feeding belts to ensure easy adjustment,
Continuously Variable Speeder to ensure feeding internal
One-touch Pneumatic knife, easy for the adjustment of feeding |
|

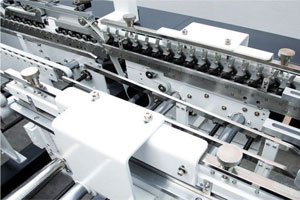

Aligner section
Equipped with auto-correction device to correct the obliquity |
|
Pre-folding Section Double-board structure with a set of pre-folding knife.
Pre-fold angle is 180°and 135°, especially suitable for small |
|
Lock bottom Section
board tracking structure, upper gluer can make bottom-locked
The entire bottom-lock part is installed in a reversible bracket, |
Lower gluing tank Equipped with the lower gluing tank. |
|
Folding and closing
The folding is equipped with the driving belt, folding belts have corrective |
|
Trombone section
Adjust the pressure easily and reliably to ensure the gluing quality; Equipped |
|
Transmission
Press: Equipped with one-touch pneumatic pressure adjustment, easy operation. 1.waiting, when feeding is paused, press will auto enter into waiting state 2.Travel switch, pause the machine in case of wrong collecting |
|
Straight-line box |
![]() |
|||
Model | 650Type | 800Type | 1100Type | |
A | 90-650 | 90-800 | 120-1100 | |
B | 60-800 | 60-800 | 60-800 | |
C(Min) | 35 | 35 | 35 |
Crash lock bottom box |
![]() |
